Construction projects require strong foundations to ensure safety and durability. One of the most effective tools for foundation work is the vibratory hammer for excavator. This machine is specially designed to drive or extract piles quickly and efficiently by using powerful vibrations. But not all soils are the same, and the performance of a vibratory hammer depends a lot on soil conditions.

In this article, we will explore what a vibratory hammer for excavator is, how it works, and most importantly, what soil conditions are best suited for its operation. The goal is to explain everything in simple language so that even a school-going student can easily understand.

What is a Vibratory Hammer for Excavator?

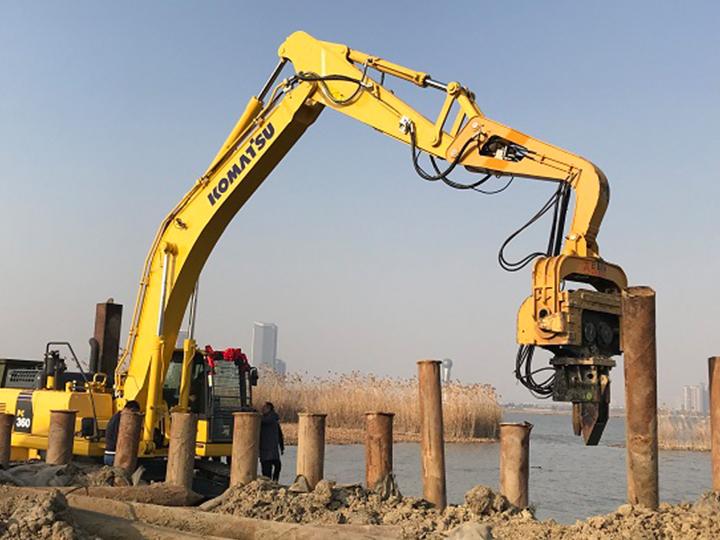

A vibratory hammer for excavator is an attachment that can be connected to an excavator. Its main job is to drive piles into the soil or remove them when needed. Piles are long, strong structures made of steel, concrete, or wood that act as supports for buildings, bridges, and other heavy structures.

Instead of using heavy blows like traditional hammers, the vibratory hammer works by producing strong vibrations. These vibrations reduce the resistance between the pile and the soil, making it easier for the pile to move downward. When used with an excavator, the machine becomes mobile, flexible, and efficient for different types of construction projects.

How Does a Vibratory Hammer for Excavator Work?

The working principle of a vibratory hammer for excavator is based on vibration and soil mechanics. The machine has rotating weights that spin in opposite directions. When these weights rotate, they generate vertical vibrations.

These vibrations are transferred to the pile, which shakes the surrounding soil particles. As the soil particles are disturbed, the friction between the soil and the pile decreases. This allows the pile to slide smoothly into the ground.

If the machine is used in reverse, the same vibration helps loosen the pile from the soil, making it easier to extract.

Why Soil Conditions Matter

The success of a vibratory hammer for excavator depends on the type of soil it is working in. Soil is not the same everywhere. In some areas, the soil is loose and sandy, while in others it may be hard clay, gravel, or even rock. Each soil type reacts differently to vibration.

If the soil is suitable, the machine can drive piles quickly with less energy. If the soil is not suitable, the work becomes slow, and sometimes piles cannot be driven at all. That is why understanding soil conditions is important before using a vibratory hammer for excavator.

Best Soil Conditions for a Vibratory Hammer for Excavator

Now let us look at the soil conditions where a vibratory hammer for excavator works best.

1. Loose or Medium-Dense Sand

Loose sand is one of the best soils for a vibratory hammer. The soil particles are not strongly bonded together, and when vibrations are applied, they move apart easily. This reduces resistance around the pile, making it simple to drive it deep into the ground.

Medium-dense sand also responds well because the vibrations loosen the grip of the soil. Construction projects in sandy coastal areas often use vibratory hammers successfully.

2. Gravel and Mixed Soils

Gravel and mixed soils with sand and small stones are also good conditions for a vibratory hammer for excavator. The gaps between particles allow vibrations to spread easily. The soil around the pile becomes loose during vibration, which helps the pile penetrate faster.

Gravelly soils are often found in riverbeds or near water bodies, where vibratory hammers are highly effective.

3. Saturated Soils (Water-Logged Soil)

Soil that contains a lot of water is suitable because vibrations cause the water to act like a lubricant. This process is known as "liquefaction." It reduces the soil’s resistance and allows the pile to move smoothly downward.

This condition is common in areas near rivers, lakes, or wetlands where soil naturally holds a high amount of water.

4. Soft Clay

Soft clay is another soil type where a vibratory hammer for excavator can perform well. The vibrations reduce the stickiness of clay, making it easier for the pile to slide in. However, care must be taken because clay can be tricky if it is too stiff or dry.

Challenging Soil Conditions for Vibratory Hammer

While the machine works well in many types of soils, some conditions are not suitable for a vibratory hammer for excavator.

1. Hard Clay or Dry Clay

If the clay is very stiff or dry, vibrations may not be enough to loosen it. In such soils, piles may not reach the desired depth easily. Special equipment may be required to handle these conditions.

2. Rocky Soil

Rocky soil or soil containing large boulders is not suitable. The vibrations cannot break or move rocks, so the pile gets stuck. Driving piles in such soil often requires drilling or other heavy machinery.

3. Dense Sand with No Water Content

Very dense sand without moisture can resist vibrations. The soil particles lock together tightly, making it difficult for the pile to penetrate. In these cases, the work becomes slow and requires more energy.

How Engineers Test Soil Before Using a Vibratory Hammer

Before using a vibratory hammer for excavator, engineers study the soil at the construction site. They take soil samples and test them in laboratories. These tests help determine the soil type, density, and water content.

By studying these factors, engineers can decide whether a vibratory hammer is the right choice or if another machine should be used. This planning saves time and ensures safety during construction.

Benefits of Using a Vibratory Hammer for Excavator in Good Soil

When used in the right soil conditions, a vibratory hammer for excavator offers many advantages:

  • Speed: Piles can be driven or extracted quickly, saving time.

  • Efficiency: Less energy is required compared to traditional methods.

  • Flexibility: Works well with different pile materials such as steel, concrete, or wood.

  • Precision: Allows accurate placement of piles.

  • Safety: Reduces heavy impacts and makes work safer for operators.

Safety Precautions During Operation

Even in the best soil conditions, safety should always come first when using a vibratory hammer for excavator. Some safety measures include:

  • Checking the excavator and hammer before starting work.

  • Ensuring the pile is aligned properly before driving.

  • Keeping workers at a safe distance from the operating area.

  • Monitoring vibrations to avoid damage to nearby structures.

  • Following proper maintenance of the machine.

Conclusion

The vibratory hammer for excavator is a powerful and efficient tool for driving and extracting piles. However, its success depends largely on soil conditions. Loose sand, gravel, saturated soils, and soft clay provide the best results. On the other hand, hard clay, rocky soil, and very dense dry sand can be challenging.
