Water scarcity and declining groundwater levels have become serious challenges for residential, commercial, and industrial developments. This case study explains how a Rainwater Harvesting System, combined with a Modular Rainwater Harvesting System and Water Recharge System, helped restore groundwater levels and improve long-term water sustainability.

Project Background

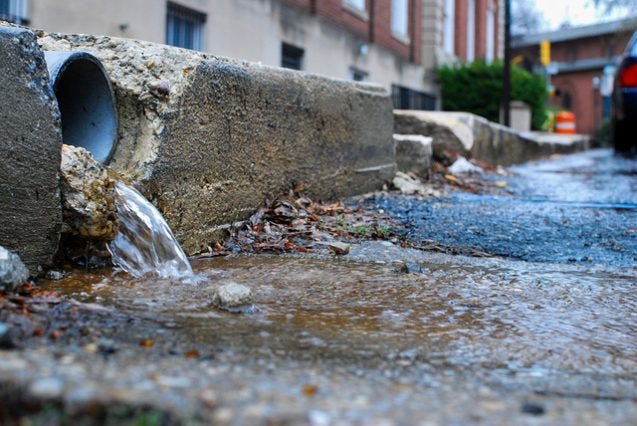

A large mixed-use development was facing frequent water shortages due to a falling water table and reduced borewell yield. Despite regular rainfall during the monsoon season, most rainwater was lost as surface runoff. The project required an effective ground water recharge system to capture rainwater and replenish underground water reserves.

Press enter or click to view image in full size

Solution: Integrated Modular Rainwater Harvesting System

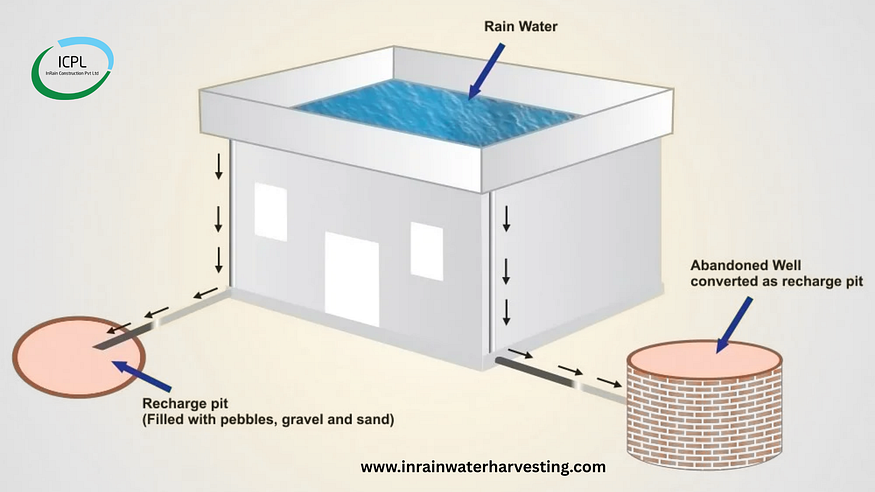

To address the issue, an integrated Modular Rainwater Harvesting System was installed along with rooftop rainwater harvesting channels. Rainwater collected from roof surfaces and open areas was passed through filtration units and directed into modular underground storage structures.

Press enter or click to view image in full size

The stored rainwater was gradually released into the soil, allowing controlled percolation and efficient groundwater recharge while preventing contamination.

Implementation Process

The system design was based on site conditions, rainfall intensity, and daily water demand. Modular units were installed underground to optimize space usage while ensuring high water storage capacity. A dedicated water recharge system ensured that filtered rainwater reached deeper soil layers safely.

Press enter or click to view image in full size

Inspection chambers were included to simplify maintenance and ensure long-term performance of the rainwater harvesting system.

Results and Impact

Within one year of installation, visible improvements were observed. Groundwater levels stabilized, and borewell yield improved during peak summer months. Dependency on tanker water reduced significantly, and water availability became more consistent throughout the year.

Press enter or click to view image in full size

The rainwater harvesting system also reduced surface runoff and waterlogging during heavy rainfall, improving overall site drainage.

Key Benefits Achieved

• Improved groundwater recharge and water table stability
• Better borewell yield and year-round water availability
• Reduced dependence on tanker and municipal water supply
• Low-maintenance and long-term water conservation solution

Conclusion

This case study highlights how a well-planned Rainwater Harvesting System, supported by a Rainwater Harvesting System and Ground Water Recharge System, can deliver measurable and sustainable results.

By combining efficient rainwater collection with advanced water recharge solutions, long-term groundwater management becomes achievable for residential, commercial, and industrial developments.
